Single face in situ concrete barrier for bridges
PHSEG0/0a-H4bW2
Permanent Vehicle Restraint System for bridges
Single face in situ concrete barrier for bridges
Parameters of behaviour according to UNE-EN 1317-2
| Containment level: | H4b |
| Normalized work width level: | 0,8 m (W2) |
| Maximum dynamic deflection: | 0,3 m |
| Impact severity level: | B |
| Normalized vehicle intrusion level: | 1,6 m (VI5) |
Initial type tests
| LABORATORIES | TYPE OF IMPACT TEST |
|---|---|
| APPLUS IDIADA | TB11 – A213006ALGS |
| CIDAUT | TB81 – E21 – 0300 |

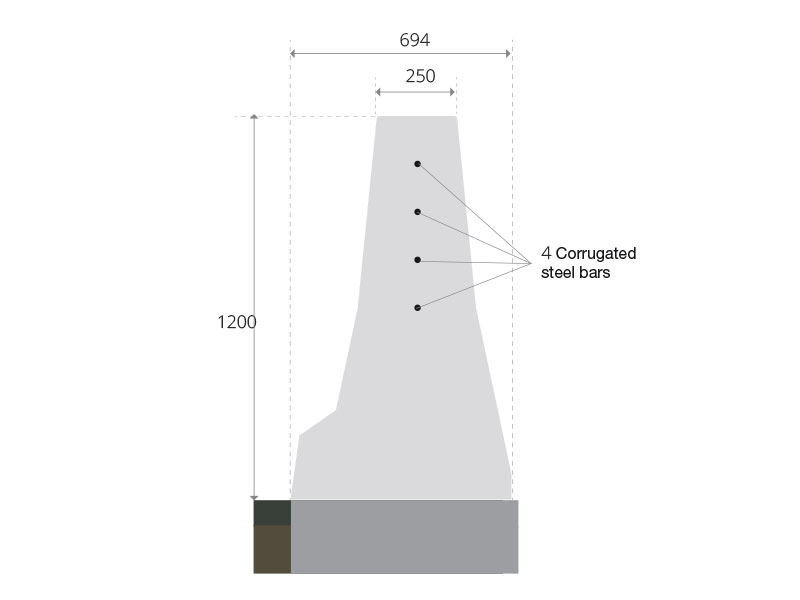

Type and characterization of materials:
| Concrete: | HA-35/P/20/I+F |
| Armor: | B 500 SD |
| Resistance to snow removal: | Class 4 |
| Terrain type: | On a layer with bituminous firm or concrete. |
| Conditions of durability (materials and coatings): | XF4 exposure class according to UNE-EN 206-1. |
| Manufacturing Procedure: | According to Installation Manual |
