Double face in situ concrete barrier BHDEG0/0a-H2
Permanent Vehicle Restraint System
Parameters of behaviour according to EN 1317-2
| Containment level: | H2 |
| Impact severity level: | 1,2 m (W4) |
| Normalized work width level: | 0,5 m |
| Maximum dynamic deflection: | B |
| Normalized vehicle intrusion level: | 1,1 m (VI4) |
Initial type tests
| Laboratories | Type of impact test |
|---|---|
| APPLUS IDIADA | TB11 – 144414AI |
| CIDAUT | TB51 – E15-1268 |

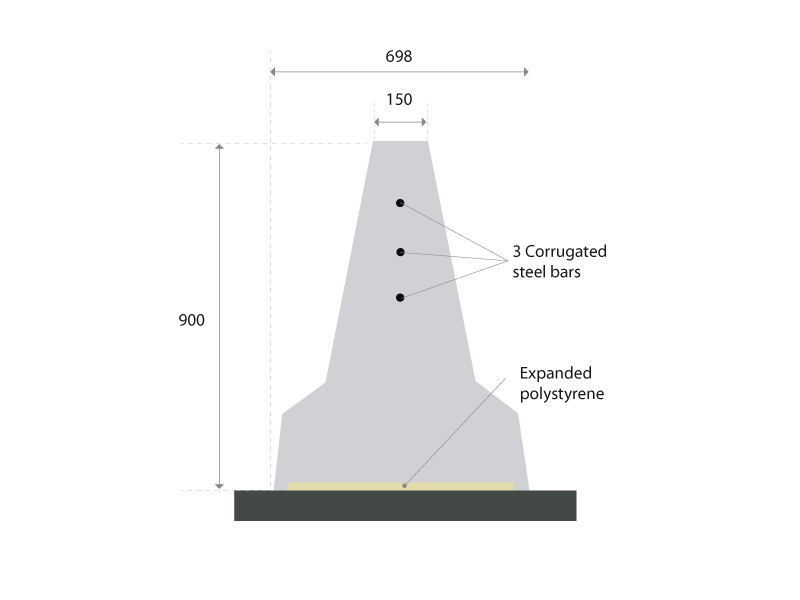

Type and characterization of materials:
| Concrete: | HA-30/P/I/F |
| Armor: | B 500 SD |
| Porexpan: | Knauf therm th 35 |
| Resistance to snow removal | Class 4 |
| Terain type: | Not deformable compact ground against the weight of the restraint system. |
| Parts detached: | Parts of the system of more than 2 kg are released from the front part and in contact with itself. |
| Conditions of durability (materials and coatings): | XF4 exposure class according to EN 206-1 |
| Manufacturing Procedure: | According to Installation Manual |
