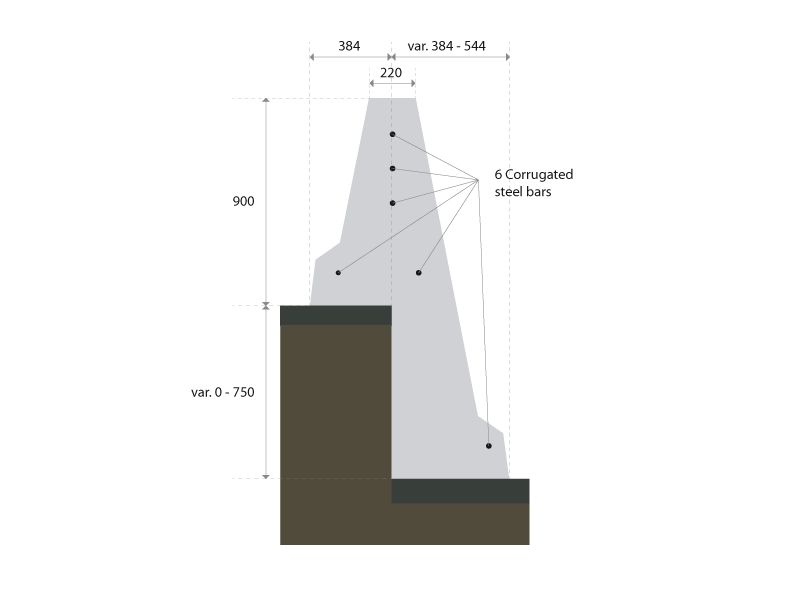

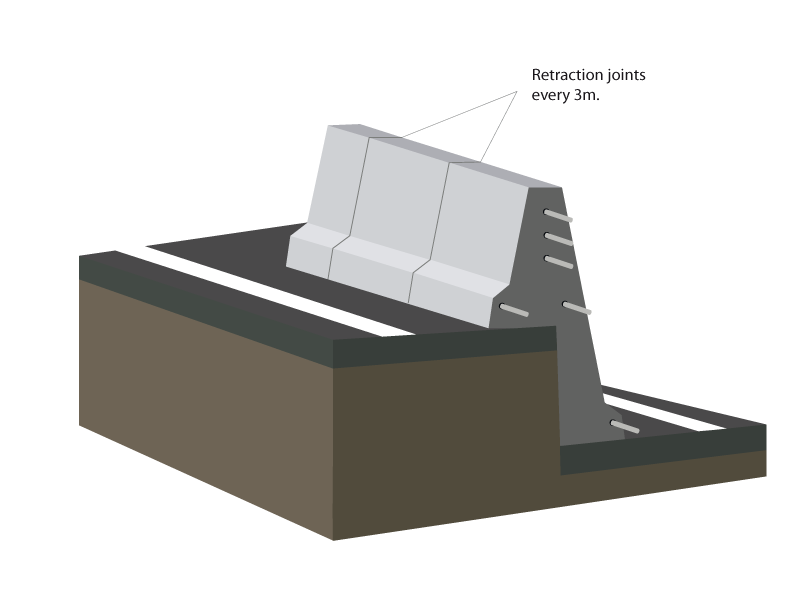

Double face in situ concrete barrier with variable height
BHDEG0/0a-HV-H2W3
Permanent Vehicle Restraint System
Double face in situ concrete barrier with variable height
Parameters of behaviour according to EN 1317-2
| Containment level: | H2 |
| Normalized work width level: | 1,0 m (W3) |
| Maximum dynamic deflection: | 0 m |
| Impact severity level: | B |
| Normalized vehicle intrusion level: | 0,7 m (VI2) |
Initial type test
| Laboratories | Type of impact test |
|---|---|
| APPLUS IDIADA | TB11 – 144414AI |
| CIDAUT | TB51 – E15-2445 |
Type and characterization of materials:
| Concrete: | HA-30/P/I/F |
| Armor: | B 500 SD |
| Resistance to snow removal: | Class 4 |
| Terrain type: | On a layer with a minimum thickness of 15 cm of bituminous firm or concrete. |
| Parts detached: | they do not detach. |
| Conditions of durability (materials and coatings): | XF4 exposure class according to EN 206-1 |
| Manufacturing Procedure: | According to Installation Manual |
