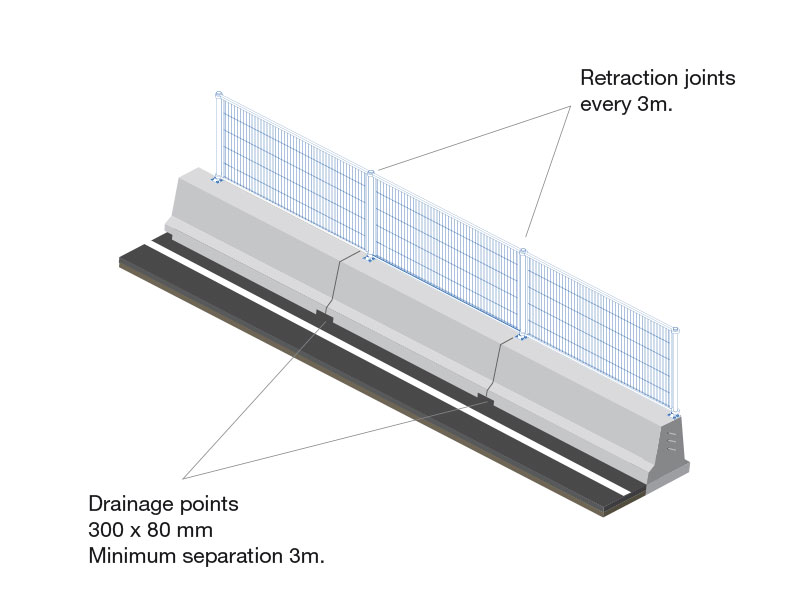

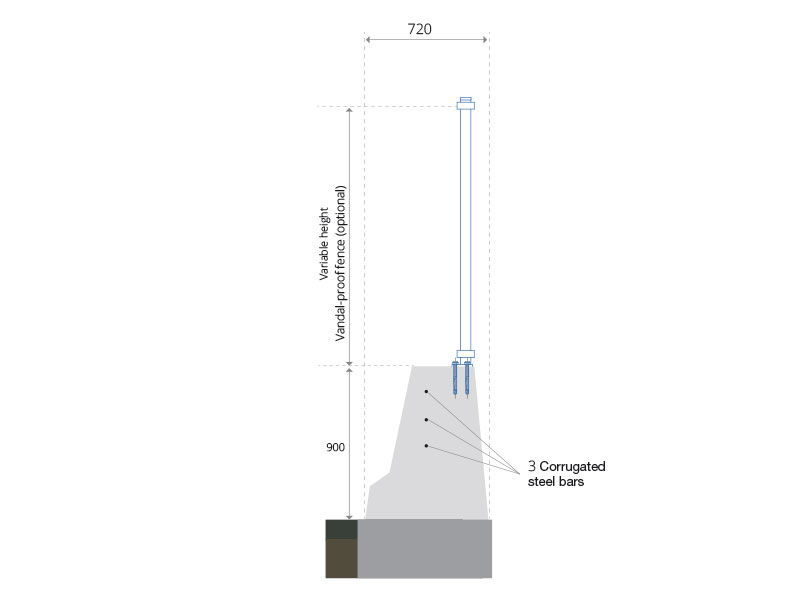

Single face in situ concrete barrier for vandal-proof fence
PHSEG0/0a-VF-H2W2
Permanent Vehicle Restraint System for bridges
Single face in situ concrete barrier for vandal-proof fence
Parameters of behaviour according to UNE-EN 1317-2
| Containment level: | H2 |
| Normalized work width level: | 0,7 m (W2) |
| Maximum dynamic deflection: | 0 m |
| Impact severity level: | B |
| Normalized vehicle intrusion level: | 0,5 m (VI1) |
Type and characterization of materials:
| Concrete: | HA-30/P/20/I+F |
| Armor: | B 500 SD |
| Resistance to snow removal: | Class 4 |
| Terrain type: | On a layer with bituminous firm or concrete. |
| Parts detached: | They do not detach |
| Conditions of durability (materials and coatings): | XF4 exposure class according to EN 206-1 |
| Manufacturing Procedure: | According to Installation Manual |
