Single face in situ concrete barrier for bridges PHSEGO/0a-H2W1

Permanent Vehicle Restraint System for bridges

Parameters of behaviour according to UNE-EN 1317-2

Containment level:H2
Normalized work width level:0,6 m (W1)
Maximum dynamic deflection:0 m
Impact serverity level:B
Normalized vehicle intrusion level0,7 m (VI2)

Initial type test

LaboratoriesType of impact test
APPLUS IDIADATB11 – 144414AI
CIDAUTTB51 – E15-2445

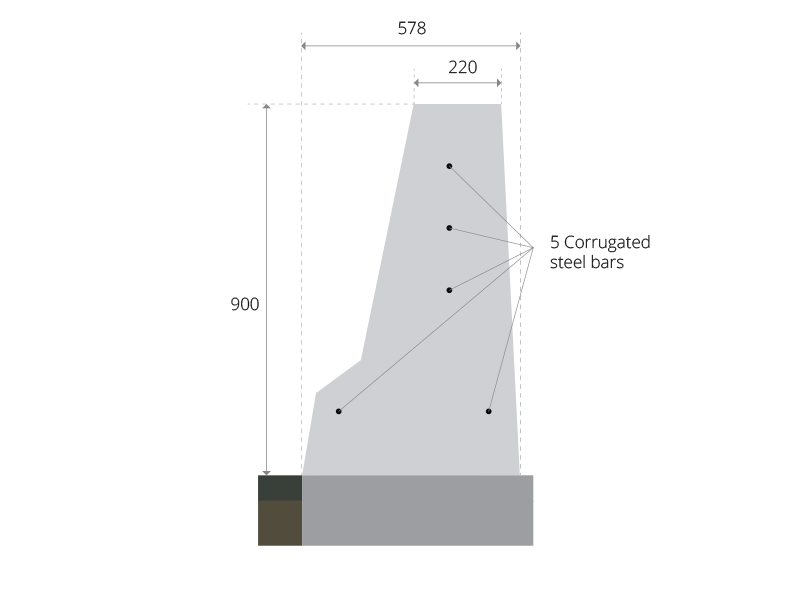

Type and characterization of materials:

Concrete:HA-30/P/I/F
ArmorB 500 SD
Resistance to snow removal:Class 4
Terrain type:On a layer with bituminous firm or concrete.
Parts detached:They do not detach
Conditions of durability (materials and coatings):XF4 exposure class according to EN 206-1
Manufacturing Procedure:According to Installation Manual
